Canon EOS M2 a doua generatie de camera compacta mirrorless anuntata in Asia

Canon EOS M2

Canon a lansat ieri pe piata din Asia (Japonia si China) a doua generatie de camera foto compacta mirrorless – Canon EOS M2, care aduce o actualizare la capitolul autofocus, acolo unde primei generatie suferea. Noul model EOS M2 dispune de un CMOS hibrid AF II, suport WiFi, Servo mode in timpul filmarii unui videoclip si acelasi senzor de 18MP, ISO 12.800.

Se pare ca acest model nu va fi disponibil prea curand in Europa sau America de Nord, tot ceea ce stim e ca va fi lansata la mijlocul aecstei luni in Japonia. Vom revenii cu alte detalii cand le vom avea la dispozitie de la Canon Romania.

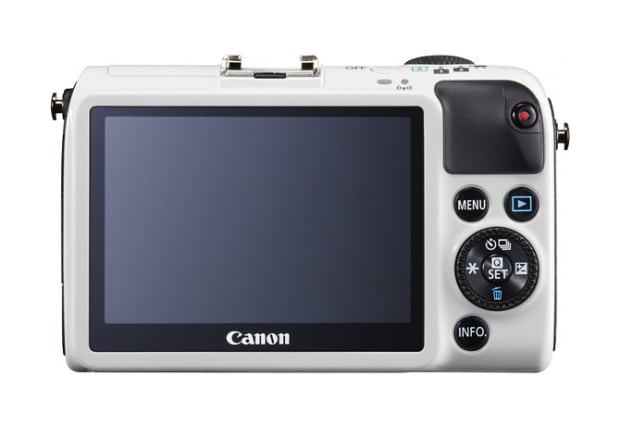

canon-eos-m2-2 canon-eos-m2-3 canon-eos-m2-4

Specificatii Canon EOS M2:

Full specifications after the break


Type Single-lens mirrorless AF / AE camera
Recording media SD Memory Card, SDHC Memory Card, SDXC Memory Card
compatible with UHS-I ※
Image Sensor Size Approximately 22.3×14.9 mm
Compatible lenses Canon EF-M, EF ※ and EF-S ※ lens
mount adapter ※ need EF-EOS M.
(35 mm equivalent focal length is approximately 1.6 times lens focal length)
Lens mount Canon EF-M mount


Image Sensor

Type CMOS image sensor
Effective Pixels Approximately 18 million pixels
Aspect Ratio 3:2
Dust removal function Auto, Manual, add the dust data


Recording system

Record Format Design rule for Camera File System 2.0
(Design rule for Camera File System 2.0)
Image Type JPEG, RAW (14 bit Canon original)
RAW + JPEG can be recorded simultaneously large
Recording Pixels L (large): approximately 17.9 million pixels (5184 x 3456)
M (medium): about 800 million pixels (3456 x 2304)
S1 (the small one): about 4.5 million pixels (2592 x 1728)
S2 (Little 2): Approximately 2.5 million pixels (1920 x 1280)
S3 (small 3): Approximately 350,000 pixels (720 x 480)
RAW: approximately 17.9 million pixels (5184 x 3456)


Image processing during shooting

Picture Style Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3
Basic + Shot by ambience selection, Shoot by lighting or scene type
Additional effects shooting With (Creative Auto mode)
WB Auto, Preset (Daylight, Shade, Cloudy, Tungsten, White Fluorescent, Flash), user-defined
with the white balance correction and white balance bracketing function
※ with flash color temperature information transmission
Creative Filters Black and white particles, soft focus, fish-eye effect, painting effect, watercolor effect, Toy Camera Effect, Miniature Effect
Noise Reduction Can be applied to long exposures and high ISO sensitivity shooting
Automatic image brightness correction Auto Lighting Optimizer
Highlight tone priority Have
Lens aberration correction Peripheral illumination correction, color correction



Type Hybrid CMOS AF II
(Face + tracking, multi-point freedom of movement, freedom of movement 1:00)
Focus 31 points (maximum)
Focus mode Single AF, servo AF, manual focus
Focus brightness range EV 1 ~ 18 (23 ℃, ISO 100)
AF-assist beam Built-in (LED lights)


Exposure Control

Metering Mode Using real-time image sensor metering
· Evaluative metering (315 zones)
· Partial metering (approximately 11%)
* Spot metering (approx. 2.8%)
* Center-weighted average metering
Metering Range EV 1 ~ 20 (23 ℃, ISO 100)
Exposure Control Program AE (Scene Intelligent Auto, Creative Auto, Portrait, Landscape, Macro, Sports, Children, Food, Night Portrait, Handheld Night Scene, HDR Backlight Control, Program), shutter-priority AE,
Aperture priority AE, Manual Exposure
ISO sensitivity
(Recommended Exposure Index)
Basic Zone modes: at ISO 100 – 6400 set automatically between
※ Hand-held Twilight: The ISO 100 – 12800 set automatically between
landscape: 100 – 1600 set automatically
Creative Zone modes: in ISO 100 – Manual between 12800 set (one unit),
at ISO 100 – automatically set between 6400, ISO Auto can set the maximum ISO sensitivity,
or ISO expansion to “H” (equivalent to ISO 25600)
Exposure Compensation Manual: ± 3 to 1/3 or 1/2 stop increments
AEB: ± 2 in 1/3 or 1/2 stop increments
(can be used in combination with manual exposure compensation)
AE Lock Automatic: When focus is in the application of evaluative metering single AF mode
Manual: By AE lock button



Type Electronically controlled focal plane shutter
Shutter speed 1/4000 to 30 seconds, B (Total shutter speed range. Available range varies by shooting mode)
flash sync speed of 1/200 sec.


External flash

Compatible flash EX-series Speedlites
Flash metering E-TTL II automatic flash
Flash exposure compensation Interstage ± 2 in 1/3 or 1/2 stop increments
Flash Exposure Lock Have
PC terminal No


Drive System

Drive Mode Single, Continuous, 10 seconds self-timer / remote control, two seconds and 10 seconds delay self-timer delay Continuous
Continuous shooting speed Single-shot AF / MF: up to about 4.6 / sec.
Maximum Burst JPEG Large / Fine: Approx 13 (about 17)
RAW: about 5 (about 5)
RAW + JPEG Large / Fine: Approx 3 (about 3)
※ values ​​8GB memory card based on the use of Canon’s testing standards ( ISO 100 and “Standard” Picture Style).
※ values ​​in brackets apply based on Canon testing standards UHS-I compatible 8GB memory card.


Still image shooting

Aspect Ratio Settings 3:2,4:3,16:9,1:1
Focus mode AF, Manual Focus (available for about 5 times, 10 times magnification confirmation), Automatic + Manual Focus
Continuous AF Have
Touch Shutter Have
Show gridlines 2 types
Depth of Field Preview Have


Movie Shooting

Video compression MPEG-4 AVC/H.264
variable (average) bit rate
Audio recording format Linear PCM
Record Format MOV
Recording size and frame rate 1920×1080 (Full HD): 30p/25p/24p
1280×720 (HD): 60p/50p
640×480 (SD): 30p/25p
※ 30p: 29.97 frames / sec, 25p: 25.00 frames / sec, 24p: 23.98 frames / sec, 60p : 59.94 / sec, 50p: 50.00 frames / sec
File Size 1920×1080 (30p/25p/24p): about 330MB / min
1280×720 (60p/50p): about 330MB / min
640×480 (30p/25p): about 82.5MB / min
Focus mode Hybrid CMOS AF II (Face + tracking, multi-point freedom of movement, freedom of movement 1:00)
Manual focus (can be about five times, 10 times magnification confirmation)
Focus brightness range EV 1 ~ 18 (23 ℃, ISO 100)
Focus mode AF, Manual Focus (available for about 5 times, 10 times magnification confirmation), Automatic + Manual Focus
Servo AF Have
Metering Mode Use the image sensor Center-weighted average metering and evaluation
※ AF mode is automatically set by the
Metering Range EV 1 ~ 20 (23 ℃, ISO 100)
Exposure Control Short Program AE and manual exposure
Exposure Compensation Between ± 3 in 1/3 increments
ISO sensitivity
(Recommended Exposure Index)
When using the auto exposure shooting: Automatically ISO 100 – 6400 set
when using manual exposure shooting: Auto / Manual ISO 100 – 6400 set, can be extended to “H” (equivalent to ISO 12800)
Digital zoom You can set about 3-10 times zoom
Video Snapshot Can be set to 2 seconds / 4 seconds / 8 seconds
Miniature Effect movie Have
Recording With built-in stereo microphone
External stereo microphone terminal
can adjust the recording level, with wind suppression function (when using the built-in microphone), with the attenuator function
Show gridlines Two types of


LCD Monitor

Type TFT color LCD monitor
Monitor size and dots Widescreen, 3.0 “(3:2), about 104 million points
Brightness adjustment Manual (7)
Interface Language 25 kinds (including Simplified Chinese)
Touch screen technology Electrostatic capacity mode
Features Can be displayed



Image Display Format Single image display, single image + information display (basic information, shooting information, histogram), 4
pieces / 9/36/100 image index
Enlarge Display About 1.5 times – 10 times
Image browsing methods Single image, jump (by 10 or 100 images, shooting date, folders, video clips, still images, score)
Image Rotation Can
Highlight alert Overexposed highlights blink
Score Have
Movie playback Allowed (LCD monitor, video / audio output, HDMI output)
Built-in speaker
Image Protection Can
Slideshow All images, by date, folder, video clips, still images or scoring
choose five kinds of transition effects
Background music You can choose to play as a slide show and video playback


Image post-processing

Creative Filters Black and white particles, soft focus, fish-eye effect, painting effect, watercolor effect, Toy Camera Effect, Miniature Effect
Resize Can
Clipping Can change the view cut, cut orientation and aspect ratio, you can move the trimming frame


Direct Print

Compatible printer PictBridge-compatible printer
You can print images JPEG and RAW images
Print command Compatible DPOF1.1 edition


Custom Functions

Custom Functions Seven kinds
My Menu registration Have
Copyright Information This information can be entered and contain



Audio / Video Output / Digital Terminal Analog video (with NTSC / PAL compatible) / stereo audio output
for computer communication and direct printing (equivalent to Hi-Speed ​​USB)
HDMI mini output terminal C-type (automatic switching resolution), CEC-compatible
External microphone input terminal 3.5 mm diameter stereo mini-jack
Wireless Remote Remote control RC-6


Power supply

Battery Battery LP-E12 (1节)
※ You can use alternating current through the AC Adapter Kit ACK-E12
Battery Life
(Based on CIPA testing standards)
23 ℃ at about 230, 0 ℃ about 200 when
using a fully charged battery ※ LP-E12
Video recording time About 1 hour 30 minutes 23 ℃ when
about 1 hour 20 minutes at 0 ℃
※ use a fully charged battery LP-E12


Size and Weight

Dimensions (W × H × D) Approximately 104.9 × 65.2 × 31.6 毫米
Weight Approximately 274 grams (CIPA guidelines)
approximately 238 g (body only)

Operating environment

Operating Temperature Range 0 ℃ ~ 40 ℃
Operating humidity range 85% or less


Battery LP-E12

Type Rechargeable lithium batteries
Rated voltage 7.2 V DC
Battery capacity 875 mA when
Operating Temperature Range During charging: 5 ℃ ~ 40 ℃
during filming: 0 ℃ ~ 40 ℃
Operating humidity range 85% or less
Dimensions (W × H × D) Approximately 32.5 × 12.5 × 48.5 毫米
Weight Approximately 35 g


Battery Charger LC-E12C

Compatible Battery Battery LP-E12
Charging time About 2 hours (23 ℃ pm)
Input Voltage 100 – 240 V AC (50/60 Hz)
The output voltage 8.4 V DC/540 mA
Operating Temperature Range 5 ℃ ~ 40 ℃
Operating humidity range 85% or less
Dimensions (W × H × D) Approximately 65 × 25.5 × 90 毫米
Weight Approximately 76 g (without power cord)
